Heat exchangers

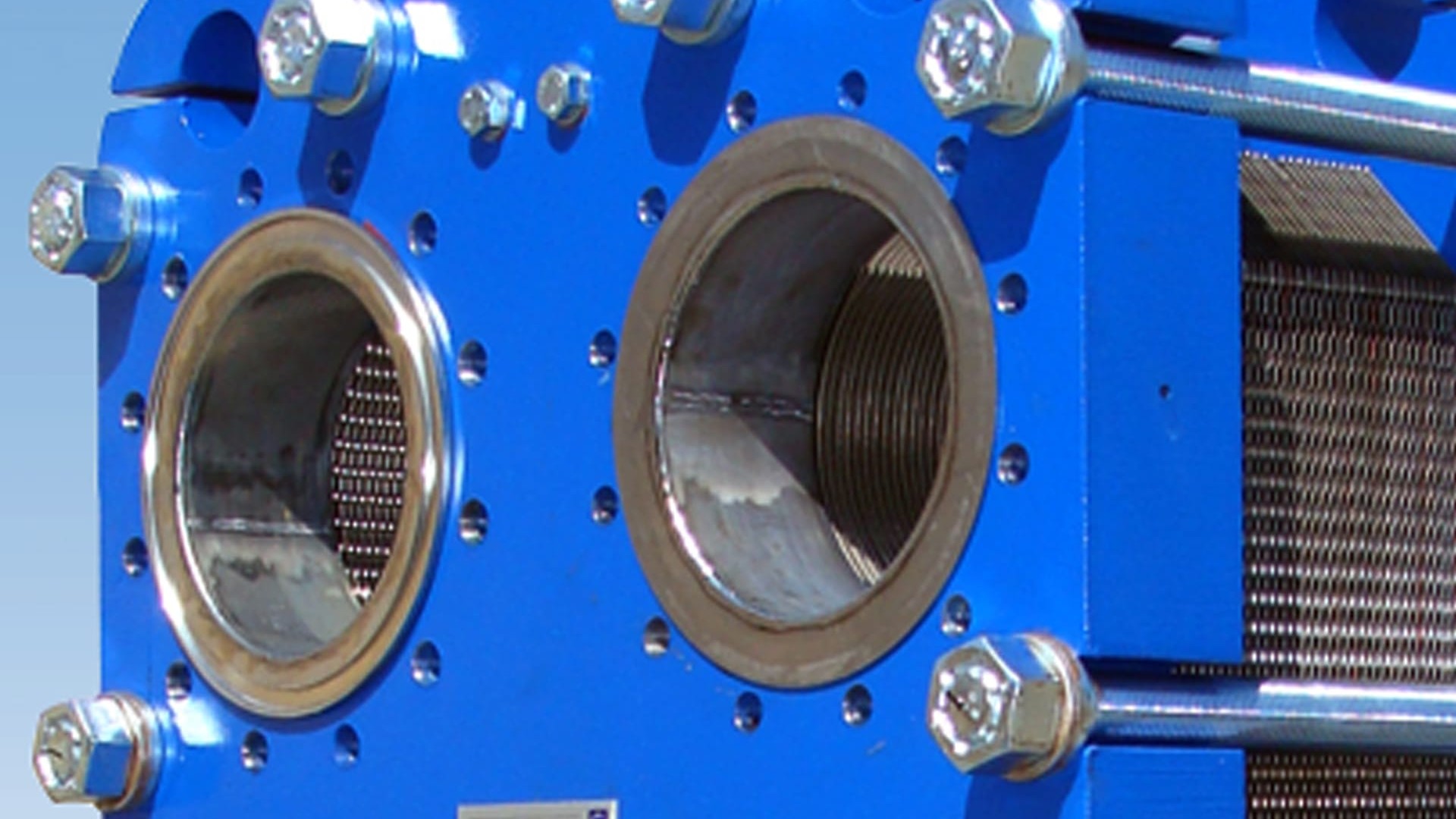

With the most extensive plate heat exchanger range PG-Sondex has got the optimal technical solution for any possible task. Connections from Ø15 to Ø650 mm covering a liquid flow range from 50 l/hour to 2800 m3/hour. The unique inlet designs and plate patterns ensures a high thermal efficiency and heat transmission for any given pressure drop.

PG-Sondex delivers standard, copper brazed, semi-welded and all-welded plate heat exchangers as well as customized heat transfer solutions for any task.

Heat exchangers for a variety of heat transfer applications:
  • Standard plate heat exchangers
  • Semi-welded plate heat exchangers
  • Sonder safe plate heat exchangers
  • Free flow plate heat exchangers
Tailored material composition and sizes based on application requirements.
Typical ranges:
  • Pressure: up to 30 bar
  • Temperature: up to 200°C
Brazed plate heat exchangers available with several thin, acid-resistant plates, precision stamped and assembled as a unit, each alternate plate being rotated 180°. The result is a strong and compact plate heat exchanger with extremely high heat transfer capability.
Typical ranges:
  • Pressure: up to 40 bar
  • Temperature: up to 185°C
