PG Submix – Efficient Agitation System

A mixer or agitator is a machine installed in a tank to keep liquids and suspended solids in motion, ensuring proper mixing and preventing sedimentation. By rotating propeller blades mounted on a top turret, the agitator creates a controlled flow pattern that maintains uniform conditions throughout the tank — supporting the desired process or product outcome.

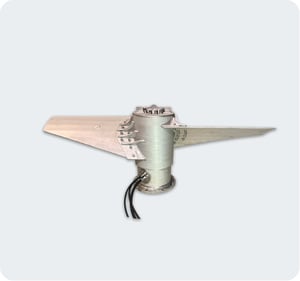

Meet PG-Submix

PG-Submix is a proven and robust agitator with hydraulic or hybrid electro-hydraulic drive. It delivers high torque at low speed to keep sludge in motion, ensuring efficient mixing and preventing unwanted settling or separation.

• Hydraulic or electro-hydraulic drive - using low speed and high-torque to mix and keep substance in suspension.
• Energy-efficient operation with optimized blade geometry
• Proven rehology - over 40 years of development with 5000+ installations world-wide
• Low maintenance and long service intervals
• Flexible mounting options (top, side, inclined)
• Robust construction for corrosive and high-load environments
• Customized configurations for  offshore, marine, aquaculture, industry, and biogas

PG Submix is ideal for continuous agitation of thick, particle-laden fluids, ensuring good homogenuous mixing and preventing setteling and sediment build-up in the lower part of the tank:

• Drilling Mud and liquid cargo storage tanks onboard Offshore Supply Vessels
• Silage holding tanks in aquaculture
• Biogas digesters and mixing pits
• Sludge and buffer tanks in municipal wastewater treatment plants
• Industrial processing tanks for sludge, pulp and other mediums prone to setteling

Differently from the a.m. electric propeller type solution (which create an angled horizontal spiral in the tank), the Submix-units create a vertical circulation by gently moving the liquid by low speed (20-45 rpm), high torque towards the bottom of the tank generating the highest energy / velocity there to lift, mix and agitate the content at very high quality.

Both the shear-forces and cavitation issues are at completely different levels compared to propeller type units. The latter making these units highly attractive also to keep special chemicals, polymers and other high value cargo in controlled suspension.

• Primary flow: from 9000 to 40,000 m3/h - depending upon size
• Material: Carbon steel or AISI 316L stainless steel / Duplex optional
• Sealing: Mechanical seals with oil chamber
• Safety system:
  • Safety valve
  • Alarm for air supply
  • Flow switch in HPU-return line
• Installation: Fixed frame, swing arm, or submerged bracket
• Control: Integration with PG control systems (optional)
• Hudraulic or Electro-Hydraulic drive (Submix-E). Systems supplied with bespoked PG Hydraulic Power Unit.
